36-LED Multi Purpose Solar Flag – Spot and Tree Up-light

Multi Purpose Solar Spot and Up-light

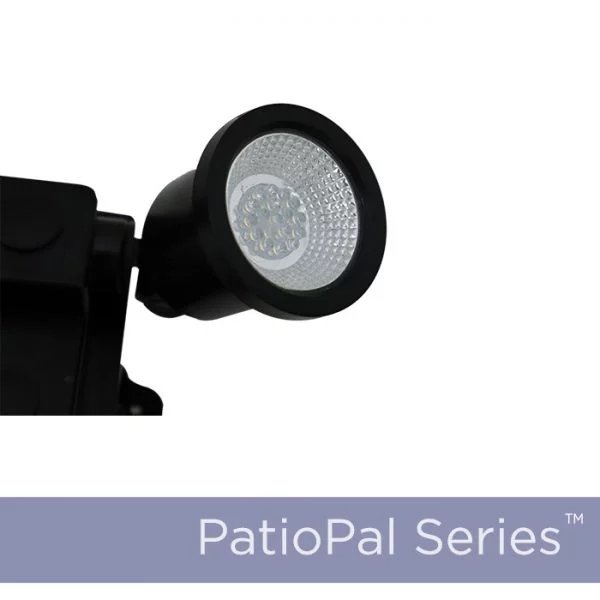

Since 2005, the PatioPal series solar lights offer the industries leading solar technology packaged into a versatile solar spot lighting product. Each unit is plug and play, easy to use without the need for additional tools / equipment. The solar panel recharges the internal battery automatically with dusk til dawn lighting operation. Each LED fixture is on its own swivel head, making it easy to change the direction of the light for spot lighting and up-light applications.

Features:

• Wire length from solar panel to light housing (allows you to locate your solar panel in a different location): 10ft (~3 meters)
• The Spot Light is dusk to dawn operation as long as the Solar Panel has had a full day of sun to charge. It may not work as efficient if it has been overcast for a few days. (integrated low voltage disconnect prevents battery from over discharging and shortening its lifespan).
• High efficiency mono-crystalline solar panel

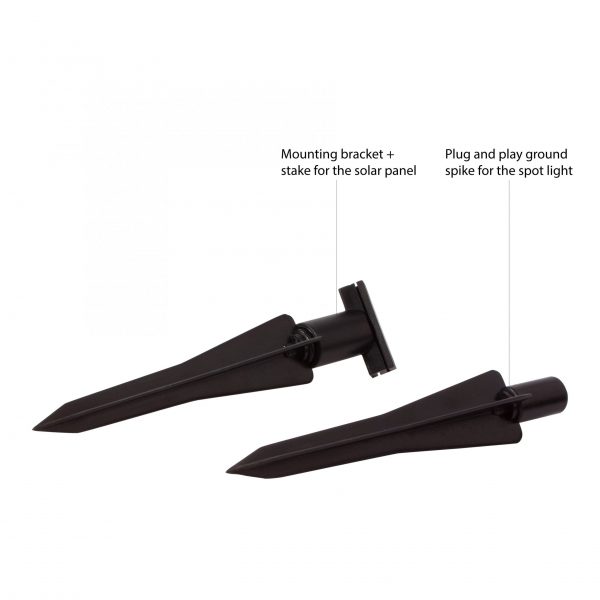

• Easy plug and play ground stakes for vertical mounting (see photos). Two mounting stakes are included, one for the solar panel and one of the light fixture and battery storage.

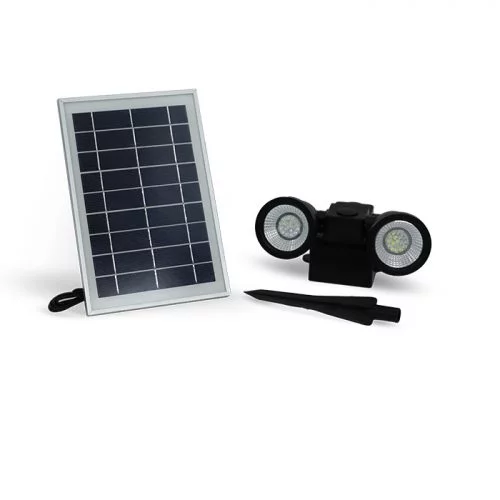

What’s included with your lighting kit

• (1) Mounting bracket + stake for solar panel
• (1) Solar panel
• (1) Solar light fixture, rechargeable battery, charging controls (one integrated fixture)

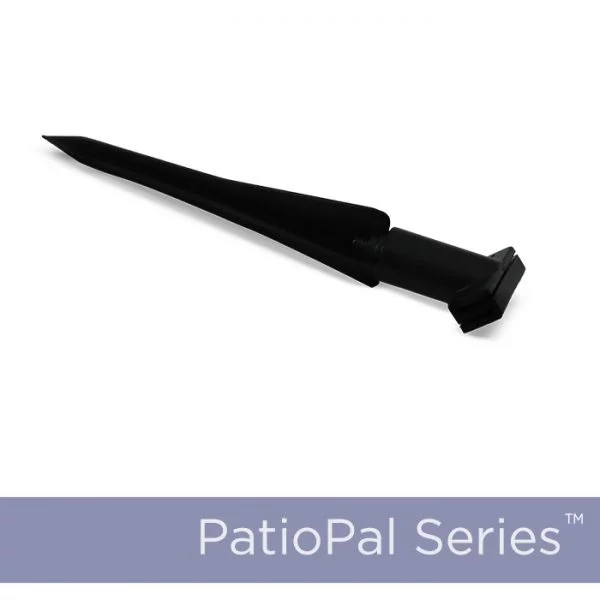

• (1) Ground stake for solar light fixture

The power source for the PatioPal-36LED spot and flood light is oversized and suitable for use in most climates and weather conditions.

• Solar Panel: 5″ x 8″ x .75″
• Solar Panel Type: 20% efficiency mono-crystalline.
• Solar Panel: 2lbs
• Solar Panel Wattage: 5W
• Solar Panel Type: Tempered glass with anodized aluminum frame
• Solar Panel Upgrade Power: Yes, can add additional panel below
• Manufacturer: Silicon Solar
• Brand: PatioPal

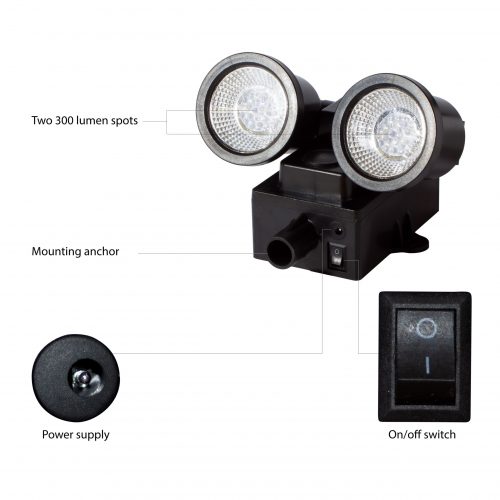

Each PatioPal-36 contains an integrated light fixture with the LEDs, charging & power electronics, and storage battery.

• Light Fixture: 13” x 9” 8.25”
• Light Fixture Weight: 10lbs
• Light Fixture Material: UV ABS Non-flammable plastic
• Weatherproof Rating: Outdoor
• Lighting Circuit Efficiency: 90%
• Lumen output per fixture: 600 (60 watt equivalent, (2) 30 Watt spots)
• Light Color Temperature: 5000k
• Light Operation Duration (Dusk till dawn): 14 hours
• Storage Battery Technology: Lithium Ion
• Storage Battery Replaceable: Yes

Each PatioPal-36 LED solar spot and flood light is pre-assembled. No tools are required for assembly and installation.

Solar Fixture Installation

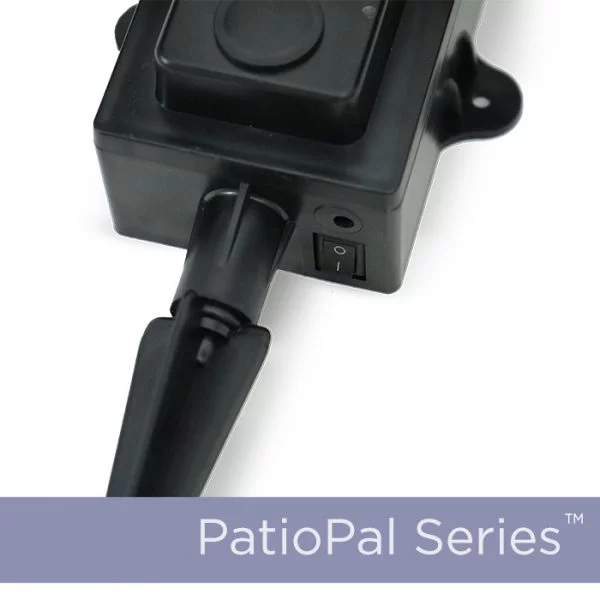

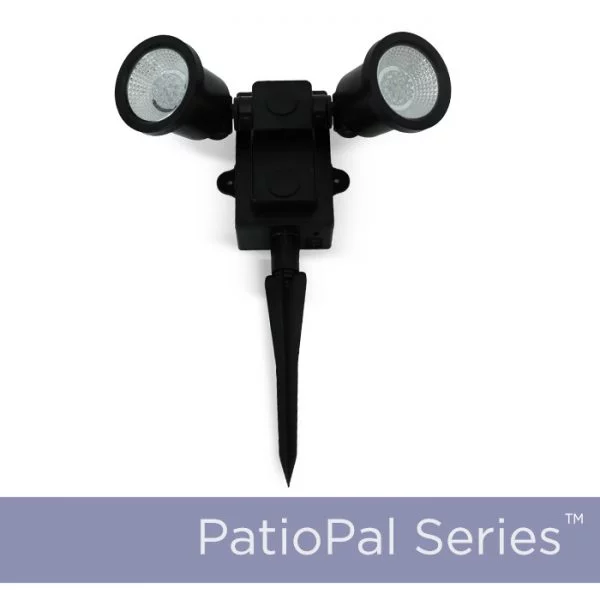

The solar light fixed can be mounted to a flat wall / surface using normal wood / metal screws or into the ground using the provided ground spike (see photos).

Installation Time: 10 minutes

Solar Panel Installation

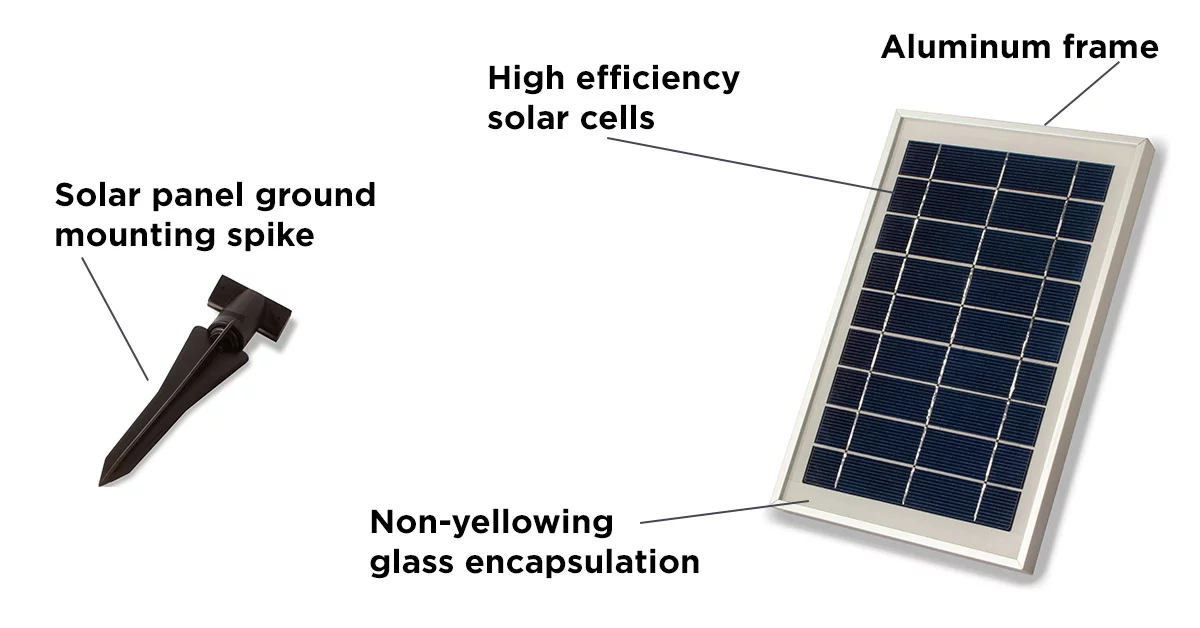

The solar panel includes a simple tilt mounting kit which can be installed in the ground (ground spike) or in the top of the light fixture.

Installation Time: 10 minutes

The PatioPal-36 LED can be ground mounted using the ground spike or can be mounted to a flat surface / wall (or post). If you are looking for a more robust way to mount your solar panel, we recommend our side of pole mount for mounting the solar panel to a pole or directly to a fence / wall.

Solar Flag Lighting:

Most of the solar flag lights on the market are not bright enough to keep your flag illuminated during the night. This product was originally designed and developed to illuminate smaller flags (12-15ft off the ground 2 x 3 ft flag). It’s easy to install and can be easily mounted directly to a flag pole using a standard pipe clamp. Operation is simple, mount the plastic fixture and plug in the solar panel. The unit is not hurricane-proof, yet it will withstand “normal” weather conditions.

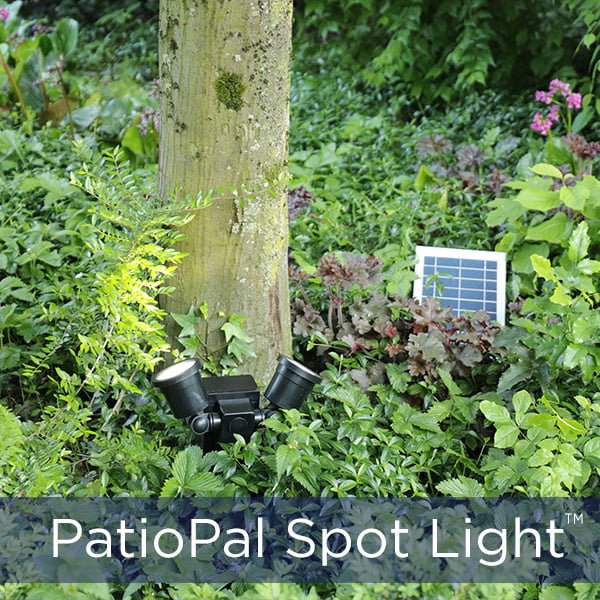

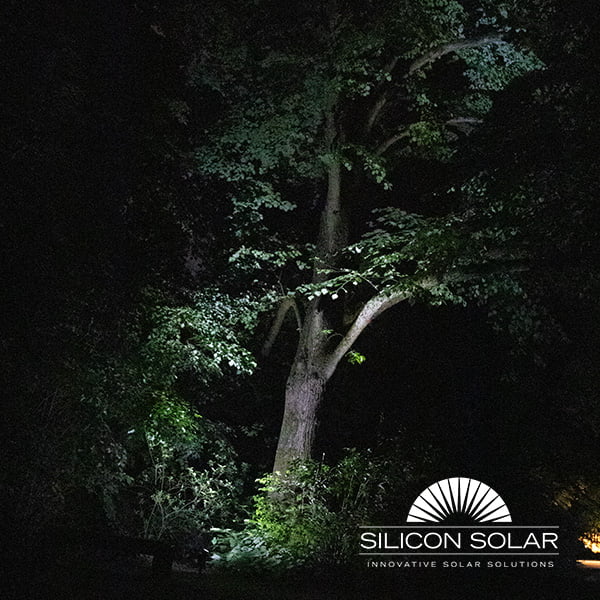

Solar Tree & Shrub Lighting:

Solar Sign Lighting:

Need to illuminate a sign? This is a perfect solution and cost effective alternative for solar sign lighting. We have provided another guide below for determining which size solar sign light is best for your application.

Solar Panel Warranty: 10 years

LED Flood Light: 2 years

Battery Warranty: 2 years

Do you offer replacement parts for the battery, solar panel and LED flood light? Yes we stock replacement components for repair and replacement after the warranty period.
