Solar Waterfall Pump Kit Direct Daylight 1500GPH with Brushless Pump
$399.95
Our largest AquaJet solar water pump kit. Designed for building solar powered waterfalls or helping circulate water for you koi / fish farms.
- Pump Max Flow Rate: 1,500 GPH
- Dry Run Protection: This pump includes our proprietary dry-run protection
- Brushless Pump: YES, includes our AquaJet series proprietary brushless technology
- Pump Lift: 10 feet of head (ft)
Questions? Just give us a call at 1-800-786-0329 9AM-5PM EST.
Share
- Description
- Additional information
- Reviews (8)
- Datasheets & Videos
Description
AquaJet MaxFlow Solar Waterfall Kit
Trusted since 1999.
Plug and play.
What our customers say 🙂
Easy and reliable setup.
- Included quick disconnect cables
- Dry run protection solar pump
- Efficient low light level solar cells
- Made by Silicon Solar
Tech Specs

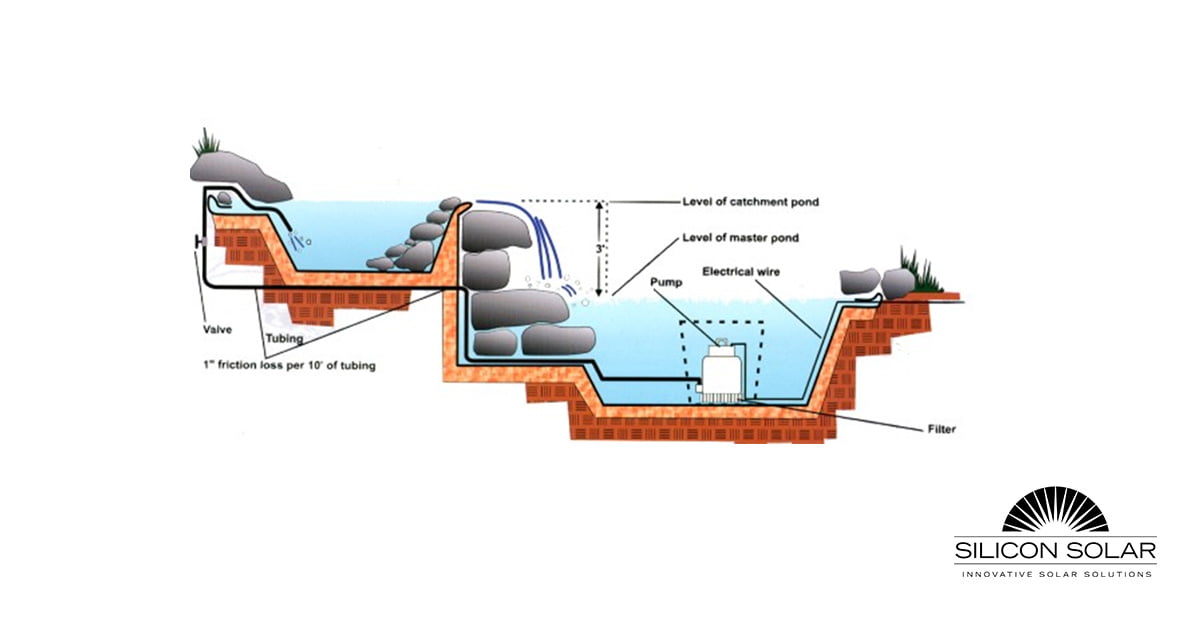

Here’s how it works:
- The solar panel directly powers the submerged solar waterfall pump kit (we also have battery storage options if you are interested in providing power to your solar pump kit when the sun goes down). For more information please call our sales team as the system design will be according to your climate and desired operating time.
- Install the included solar panel directly on a flat roof, ground, or top of pole (please select the mounting option at checkout).
- Install the submersible pump at the lowest basin of your waterfall
- Carefully install plastic tubing (below we include the proper size tubing for this pump and waterfall application).
- Each kit includes outdoor rated wire for direct burial. Connectors are watertight plug and play connectors, no complicated wiring needed.

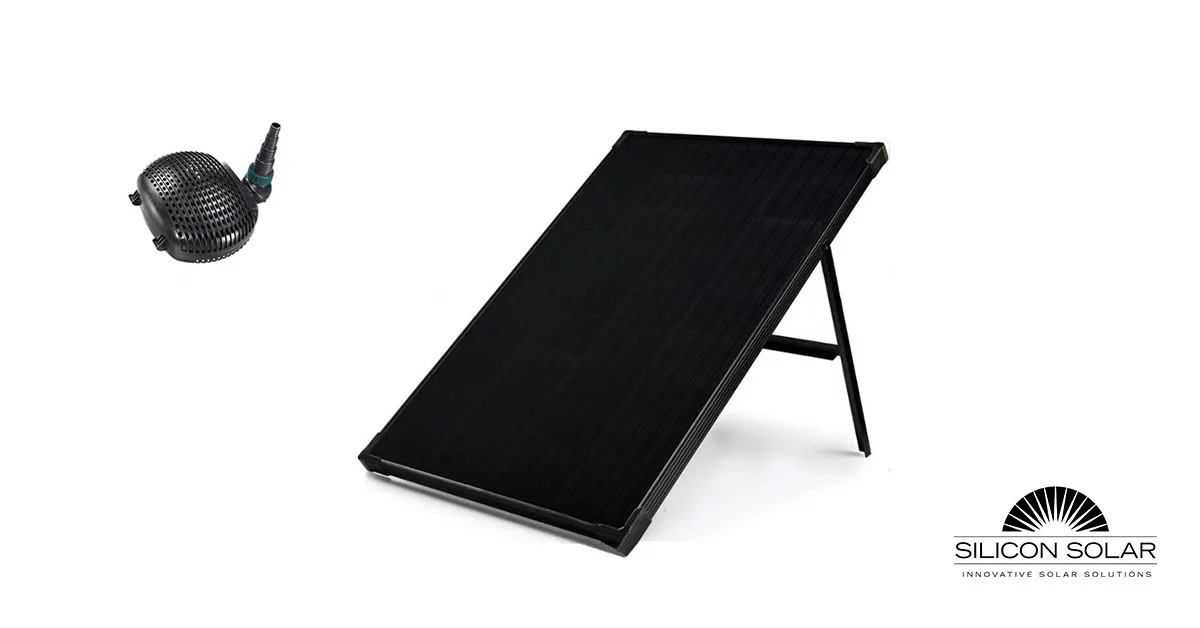

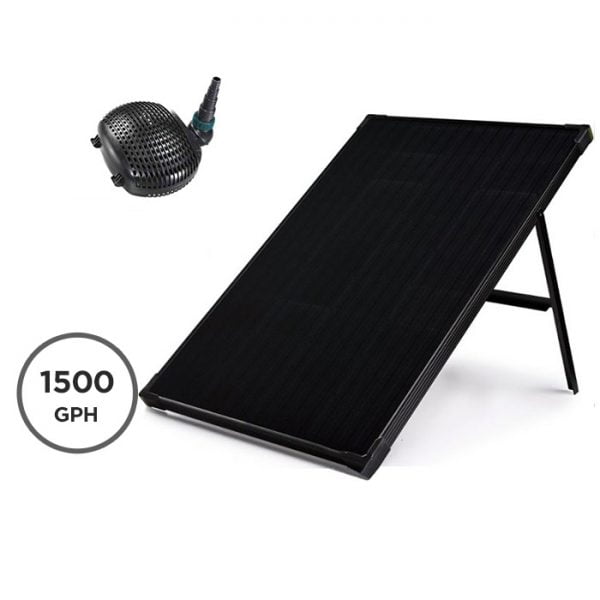

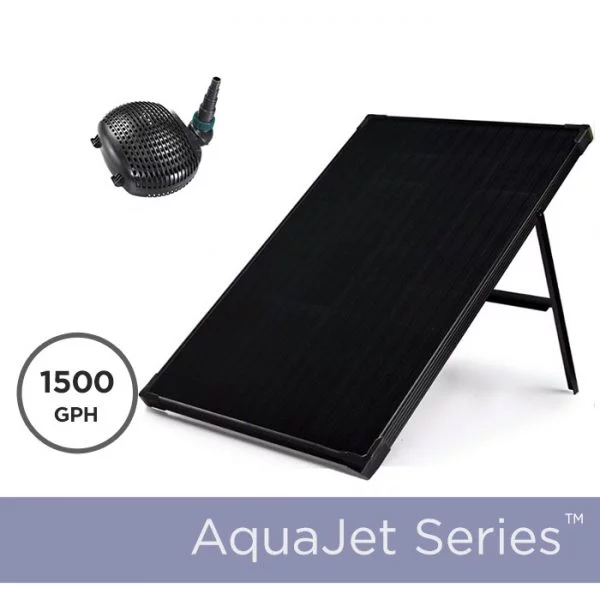

What’s included:
- Solar Panel

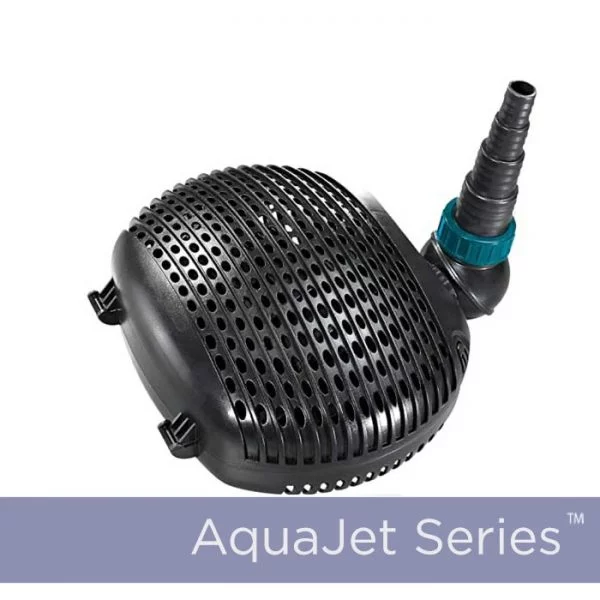

- Submersible brushless water pump
- Wiring / Cable
What’s not included:
- PVC / rubber tubing (1″ provided to the left)
- Mounting kit (pole mount kit to the left)
- Stand for the panel not included.
- Pump Max Flow Rate: 1,500 GPH
- Dry Run Protection: YES! This pump includes our proprietary dry-run protection
- Brushless Pump: YES, includes our AquaJet series proprietary brushless technology
- Pump Lift: 10 feet of head (ft)
- Solar Panel Dimensions: 40 x 26.5 x 1.5 inches
- Shipping Weight: 80 lbs
- Required Assembly Time: Varies based on existing pond configuration
- Cabling distance between solar panel & pump: 50 ft (can be direct burial)
- Pump Dimensions: 11.5″ x 8.7″ x 5.5″
- Plastic Tubing Size: 1″, 1.25″ or 1.5″ (not the outlet has different “tiers” which can be cut down to fit different size tubing requirements.
SOLAR PUMP IDEA & PROJECT GALLERY
SOLAR PUMP SIZING
Pond Aeration Sizing
| How many gallons do you want to aerate? | How much flow do you need? (GPH) | Recommended Model | Battery Backup |
|---|---|---|---|
| Less than 100 gallons | 40 | AquaJet 6V Kit | No |
| 100 - 320 gallons | 80 | AquaJet Pro 9V | Yes |
| 321 - 1000 gallons | 400 | AquaJet Pro 24V Kit | Yes |
| 321 - 1000 gallons | 400 | AquaJet Pro 12 - 24V Kit | No |
| 1001- 2000 gallons | 650 | AquaJet 24V XLV1 | No |
| 1001- 2000 gallons | 650 | AquaJet 24V XLV2 | Yes |
| 2001- 6000 gallons | 1500 | AquaJet MaxFlow | No* |
| Need more flow? We have larger custom pump kits available on request. Contact us for more information. | |||
PUMP RETROFIT
Retrofit your existing water fountain
| How much lift do you need? | How much flow do you need? (GPH) | Recommended Model | Battery Backup |
|---|---|---|---|
| Up to 24 inches | 40 | AquaJet 6V Kit | No |
| Up to 48 inches | 80 | AquaJet Pro 9V | Yes |
| Up to 10 feet | 400 | AquaJet Pro 24V Kit | Yes |
| Up to 10 feet | 400 | AquaJet Pro 12 - 24V Kit | No |
| Up to 10 feet | 650 | AquaJet 24V XLV1 | No |
| Up to 10 feet | 650 | AquaJet 24V XLV2 | Yes |
| Up to 10 feet | 1500 | AquaJet MaxFlow | No* |
| Need more flow? We have larger custom pump kits available on request. Contact us for more information. | |||
SOLAR WATERFALL PROJECT SIZING
Solar Waterfall Sizing Guide
| Waterfall Max Lift | Waterfall Flow (GPH) | Recommended Model | Battery Backup |
|---|---|---|---|
| Up to 10 feet | 400 | AquaJet Pro 24V Kit | Yes |
| Up to 10 feet | 400 | AquaJet Pro 12 - 24V Kit | No |
| Up to 10 feet | 650 | AquaJet 24V XLV1 | No |
| Up to 10 feet | 650 | AquaJet 24V XLV2 | Yes |
| Up to 10 feet | 1500 | AquaJet MaxFlow | No* |
| Need more flow? We have larger custom pump kits available on request. Contact us for more information. | |||
HOW TO CLEAN YOUR PUMP & REPLACEMENT GUIDES
DIY increase your water pumps solar power
Need more power for your water pump? No problem! We've put together a few videos and guides on how you can improve the performance of your solar water pump kit. We have simple options from cutting / splicing your wires to using one of our simple plug and play adapters that allows you to increase [...]
Solar Pond Aeration & Fountain Project
Converting the backyard pond with an AquaJet series solar pump kit Below you'll find a quick overview of how we converted an old "plug-in" style water pump with a AquaJet Pro 24V night and day solar pump kit made by Silicon Solar. If you're interested in a building a solar powered waterfall, check out this [...]
Water Features Retrofit with Solar Pump Kits
Ideas for retrofitting your existing water feature using our solar pump kits We believe in sharing the many ways you can use our solar pump kits to retrofit your existing water feature. If you're looking at a standard water feature that is powered by a normal plug in pump, check out the examples below on [...]
No tools required. Phillips head screw driver is recommended (in event you would like to replace battery in future).
Installs in <10 minutes
- Solar Panel: 15 years
- Solar pump: 3 years
- AquaJet Replacement Solar Pumps & Accessories
Pump Barrier Bag, 15″x 15″ Pond Pump Filter Bag, Black Media Bag Large Pump Mesh Bag for Pond Biological Filters
Original price was: $15.99.$9.99Current price is: $9.99. - Solar Panel Mounting Hardware
Side of Pole Solar Panel Mounting System by Silicon Solar for 26IN Solar Panel
Original price was: $169.95.$149.95Current price is: $149.95. - AquaJet Replacement Solar Pumps & Accessories, Replacement Solar Pumps & Accessories
1″ Inner Diameter PVC Tubing
Original price was: $5.99.$3.99Current price is: $3.99.
Yes, this pump is fresh and salt water capable.
No, this is a plug and go pump system.
No, this pump does not have a battery built in.
This solar pump kit is only available from Silicon Solar at www.siliconsolar.com
Additional information
| Weight | 80 lbs |
|---|---|
| Dimensions | 30 × 30 × 55 in |
| Voltage | 12 |
