Sale!

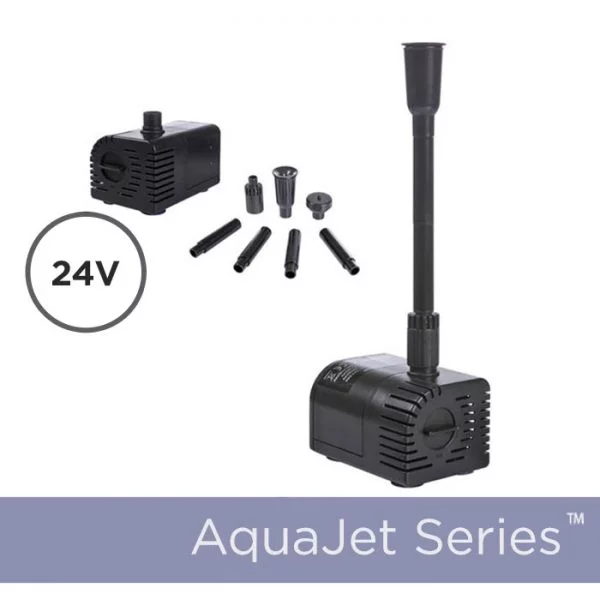

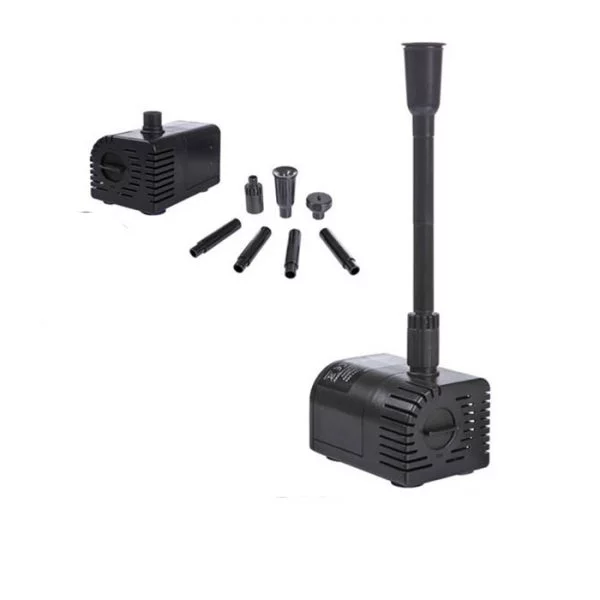

AquaJet Pro Solar Fountain Submersible Pump 12-24V

AquaJet Pro Solar Fountain Pump 12-24

Easy to clean and maintain our AquaJet 12-24 Replacement Solar Fountain Pump is the ideal solution for your medium to large solar water applications including fountains and waterfalls ponds greenhouse water irrigation or your own creative landscaping design.

The AquaJet 12-24V Replacement Pump introduces the latest in DC brushless motor technology and commercial grade durability. Designed as the replacement pump for our AquaJet 12-24 V Solar Fountain Kit this pump includes an adjustable flow knob and dry run protection feature. The spade terminal adapter allows for direct wiring into an existing 20W Solar Panel junction box*.

Note: Tubing for waterfall applications not included.

Specifications:

  • Operating voltage is DC 12V-24V
  • Maximum pump head is 3.28 Feet at 6V; 10.50 Feet at 9V
  • Maximum flow rate is 258.86 Gallons per hour at 6V; 412.11 Gallons per hour at 9V
  • Dimensions are 5.12″ x 3.35″ x  2.83″
  • Weight: 2.1 lbs
  • 16.5 ft cable length (Battery to Pump)
  • Includes 2 Fountain Heads
  • Includes Spade Terminal Adapter

Note: The performance specifications for the 12-24V AquaJet Pump is valid and applicable when being used as a replacement pump with the 12-24V AquaJet Fountain Pump Kit.   Any altering of the product itself or changing the components will void the warranty.  For best results regular cleaning and  maintenance is recommended.

Features:

  • Garden Decor Waterfall System
  • Garden Irrigation
  • Green House Irrigation
  • Fish Ponds
  • Durable Long Lasting Solar Pump
  • Adjustable Flow Knob
  • Brushless Pump for Maximum Reliability
  • Easy to Clean and Maintain

Solar Pump Curve 24V Head vs. Flow Rate

The above curve shows the relationship between pump head (in meters) and the flow rate (in liters per hour). By controlling the flow rate, the pump is able to put a variable amount of power towards pushing the water upwards. The higher the flow rate is set, the lower the overall head height will be. This is useful for sizing if a particular pump can be adjusted to fit your particular fountain and how it will perform for your specific application.

Not Sure Which Solar Pump You Need?

Solar Pond Aeration

Pond Size (G) Min Pump (GPH) Recommended Model
30 – 100 50 GPH AquaJet-Pro-Kit-9V-V1
100 – 200 100 GPH AquaJet-Pro-Kit-12V-MedOutput-v4
200 – 400 200 GPH AquaJet-Pro-Kit-12V-MedOutput-v4
400 – 700 350 GPH AquaJet-Pro-Kit-12V-MedOutput-v4
700 – 900 450 GPH AquaJet-Pro-Kit-24V-V1

Water Fountain Solar Retrofit Pump (Retrofit your existing water fountain)

Water Fountain Height Recommended Model
5-20 Inches AquaJet-Kit-6V-v2
21-30 Inches AquaJet-Pro-Kit-9V-V1
31-46 Inches AquaJet-Pro-Kit-12V-MedOutput-v4
47-55 Inches AquaJet-Pro-Kit-24V-V1
Taller? Call Us we can help custom size your water pump requirements

Building a Solar Waterfall?

Waterfall Height Waterfall Est GPH Recommended Model
5-20 Inches 200 AquaJet-Pro-Kit-12V-MedOutput-v4
21-30 Inches 200 AquaJet-Pro-Kit-12V-MedOutput-v4
31-46 Inches 300 AquaJet-Custom-Kit-24V-V1
47-55 Inches 300 AquaJet-Custom-Kit-24V-V1
Taller? Call Us we can help custom size your water pump requirements

Note: we recommend speaking with a sales representative before ordering a solar pump system for your waterfall due to the variations in types of waterfalls.

Can’t Find The Pump You Need?
Need More Performance Than A Stock Pump?

Our team of solar pump professionals and engineers can design a custom solar pumping system to meet your specific needs!

Learn More About Custom Pumps

Accessories:

Kit (For the AquaJet Pro Pump 1224 replacement pump)

Need Assistance?
If you have questions need help or simply feel uncomfortable placing your order online feel free to contact the product representative at 1-800-786-0329.

$76.10 $69.95

Available on backorder

Description

AquaJet Pro Solar Fountain Pump 12-24

Easy to clean and maintain our AquaJet 12-24 Replacement Solar Fountain Pump is the ideal solution for your medium to large solar water applications including fountains and waterfalls ponds greenhouse water irrigation or your own creative landscaping design.

The AquaJet 12-24V Replacement Pump introduces the latest in DC brushless motor technology and commercial grade durability. Designed as the replacement pump for our AquaJet 12-24 V Solar Fountain Kit this pump includes an adjustable flow knob and dry run protection feature. The spade terminal adapter allows for direct wiring into an existing 20W Solar Panel junction box*.

Note: Tubing for waterfall applications not included.

Specifications:

  • Operating voltage is DC 12V-24V
  • Maximum pump head is 3.28 Feet at 6V; 10.50 Feet at 9V
  • Maximum flow rate is 258.86 Gallons per hour at 6V; 412.11 Gallons per hour at 9V
  • Dimensions are 5.12″ x 3.35″ x  2.83″
  • Weight: 2.1 lbs
  • 16.5 ft cable length (Battery to Pump)
  • Includes 2 Fountain Heads
  • Includes Spade Terminal Adapter

Note: The performance specifications for the 12-24V AquaJet Pump is valid and applicable when being used as a replacement pump with the 12-24V AquaJet Fountain Pump Kit.   Any altering of the product itself or changing the components will void the warranty.  For best results regular cleaning and  maintenance is recommended.

Features:

  • Garden Decor Waterfall System
  • Garden Irrigation
  • Green House Irrigation
  • Fish Ponds
  • Durable Long Lasting Solar Pump
  • Adjustable Flow Knob
  • Brushless Pump for Maximum Reliability
  • Easy to Clean and Maintain

Solar Pump Curve 24V Head vs. Flow Rate

The above curve shows the relationship between pump head (in meters) and the flow rate (in liters per hour). By controlling the flow rate, the pump is able to put a variable amount of power towards pushing the water upwards. The higher the flow rate is set, the lower the overall head height will be. This is useful for sizing if a particular pump can be adjusted to fit your particular fountain and how it will perform for your specific application.

Not Sure Which Solar Pump You Need?

Solar Pond Aeration

Pond Size (G) Min Pump (GPH) Recommended Model
30 – 100 50 GPH AquaJet-Pro-Kit-9V-V1
100 – 200 100 GPH AquaJet-Pro-Kit-12V-MedOutput-v4
200 – 400 200 GPH AquaJet-Pro-Kit-12V-MedOutput-v4
400 – 700 350 GPH AquaJet-Pro-Kit-12V-MedOutput-v4
700 – 900 450 GPH AquaJet-Pro-Kit-24V-V1

Water Fountain Solar Retrofit Pump (Retrofit your existing water fountain)

Water Fountain Height Recommended Model
5-20 Inches AquaJet-Kit-6V-v2
21-30 Inches AquaJet-Pro-Kit-9V-V1
31-46 Inches AquaJet-Pro-Kit-12V-MedOutput-v4
47-55 Inches AquaJet-Pro-Kit-24V-V1
Taller? Call Us we can help custom size your water pump requirements

Building a Solar Waterfall?

Waterfall Height Waterfall Est GPH Recommended Model
5-20 Inches 200 AquaJet-Pro-Kit-12V-MedOutput-v4
21-30 Inches 200 AquaJet-Pro-Kit-12V-MedOutput-v4
31-46 Inches 300 AquaJet-Custom-Kit-24V-V1
47-55 Inches 300 AquaJet-Custom-Kit-24V-V1
Taller? Call Us we can help custom size your water pump requirements

Note: we recommend speaking with a sales representative before ordering a solar pump system for your waterfall due to the variations in types of waterfalls.

Can’t Find The Pump You Need?
Need More Performance Than A Stock Pump?

Our team of solar pump professionals and engineers can design a custom solar pumping system to meet your specific needs!

Learn More About Custom Pumps

Accessories:

Kit (For the AquaJet Pro Pump 1224 replacement pump)

Need Assistance?
If you have questions need help or simply feel uncomfortable placing your order online feel free to contact the product representative at 1-800-786-0329.

Additional information

Weight 209 oz
Dimensions 242 × 5.5 × 4 in
