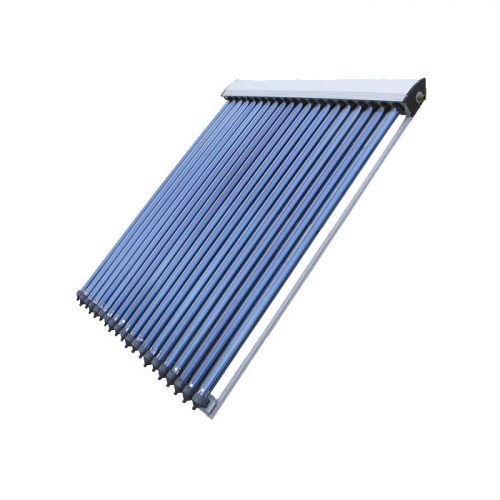

30 Vacuum Direct Flow Solar Collector VDF

30 Vacuum Direct Flow Solar Collector VDF

$1,699.95

SKU: ThermoPower-VDF30 Category:
View cart

Questions? Just give us a call at 1-800-786-0329 9AM-5PM EST.

Live chat customer support. Most orders ship within 48 hours by FedEx. 30 day hassle free return policy. Dispatched and sold by Silicon Solar.

Share

Easy Shipping

$9.95 or free on orders over $200*

Hassle Free Returns

30 day hassle free return policy

Secure Checkout

Fast and secure checkout

Trusted Solar Partner

Family owned since 1999

Description

Thirty Vacuum Direct Flow Solar Collector:
ThermoPower: Silicon Solar offers pre-packaged solar hot water heating systems for both the do-it-yourself customer and the professional installer. Each system includes the primary components required when installing a solar hot water heating system. It is our goal to keep our product cost low in order to ensure that we are making renewable energy products more affordable to the community.

All systems have been tested under the highest quality standards to ensure the longevity of your solar heating system. If you are unsure of where to start or if you require guidance with your solar hot water heating system please feel free to contact a solar hot water specialist at 1-800-786-0329.

Vacuum Direct Flow Solar Collectors are extremely efficient and cost-effective particularly in colder climates where other Solar Collectors suffer from limited performance and other problems due to their lack of freeze protection. Vacuum Tube Collectors unlike others are extremely freeze protected leading to efficiencies of over 70% even in freezing temperatures. The unique design and collection properties of these collectors make them exceedingly efficient even in low-light conditions which is another definite advantage in winter.

SunMaxx Vacuum Direct Flow Solar Collectors are among the most affordable cost-effective solar collectors available on the market today.

Specifications:

  • Weight: 170 lbs (without crating)
  • Dimensions: 5.5 ft H x 7.6 ft W
  • Packaging: Ships via freight on pallet or available for local pickup (1 pallet is available for residential or commercial delivery)
  • Assembly Time: A single collector can be assembled in 1.5 hours
  • Manufacturer: Silicon Solar Inc.
  • Warranty: 3 Year limited
  • Expected Lifetime: 25-30 years
  • Fitting: 1/2 NPT

Includes:

  • Complete Flush and Tilt Mounting Frame
  • Manifold (header)
  • 30 Revolutionary SunMaxx Vacuum Tubes
  • 30 Vacuum Direct Flow Heat Pipes
  • Hardware required for collector assembly

Product Details:

  • Tube Length: 59 in
  • Outer Tube Diameter: 1.85 in
  • Tube Thickness: 0.1 in
  • Tube Material: Borosilicate Glass 3.3
  • Tube Coating: Graded AI-N/AI
  • Thermal Expansion: 3.3 x 10-6 C
  • Absorption: >94% (AM 1.5)
  • Emittance: <7% (80 C)
  • Vacuum: P <5 x 10-3 Pa
  • Stagnation Temperature: >428 F
  • Heat Loss: <0.7 W/(m2 C)
  • Maximum Strength: 1.0 MPa
  • BTU per hour at 800 W per m2: 5923
  • Flow Rate: 3-4 gallons per minute



Additional information

Weight500 lbs
Dimensions99.00 × 7.00 in
Number of Tubes

30

Category C (clear, sunny) Output

36.3 kBtu / day

kBtus per Square Foot of Collector

0.92 kBtu / day / ft2

Glass Type

Borosilicate Glass

Total Dry Weight

168 lbs

Gross Dimensions

87.5" x 65"

Gross Area

39.33 Sq. Feet

Aperture Area

28.84 Sq. Feet

Fluid Capacity

0.7 gallons

Absorption / Emission

94% / 7%

Max. Stagnation Temperature

428 F

Max. Operation Pressure

70 psi
