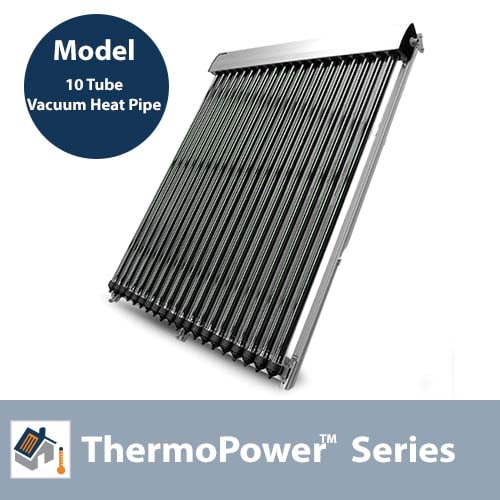

10 Evacuated Tube Collector


SKU: ThermoPower-VHP10 Category:

Questions? Just give us a call at 1-800-786-0329 9AM-5PM EST.

Live chat customer support. Most orders ship within 48 hours by FedEx. 30 day hassle free return policy. Dispatched and sold by Silicon Solar.


Easy Shipping

$9.95 or free on orders over $200*

Hassle Free Returns

30 day hassle free return policy

Secure Checkout

Fast and secure checkout

Trusted Solar Partner

Family owned since 1999


SunMaxx Evacuated Tube Solar Collectors are now SRCC & Solar Keymark Certified and now apply for all Federal & State Solar Tax Credits and other incentives!

ThermoPower: 10 Evacuated Tube Collector: Silicon Solar offers pre-packaged solar hot water heating systems for both the do-it-yourself customer and the professional installer. Each system includes the primary components required when installing a solar hot water heating system. It is our goal to keep our product cost low in order to ensure that we are making renewable energy products more affordable to the community.

All systems have been tested under the highest quality standards to ensure the longevity of your solar heating system. If you are unsure of where to start or if you require guidance with your solar hot water heating system please feel free to contact a solar hot water specialist at 1-888-SOLAR-11.

Evacuated Tube Solar Collectors are extremely efficient and cost-effective particularly in colder climates where other Solar Collectors suffer from limited performance and other problems due to their lack of freeze protection. Evacuated Tube Collectors unlike others are extremely freeze protected leading to efficiencies of over 70% even in freezing temperatures. The unique design and collection properties of these collectors makes them exceedingly efficient even in low-light conditions which is another definite advantage during winter.

SunMaxx Evacuated Tube Solar Collectors are the most affordable cost-effective solar collectors available on the market today.

How Evacuated Tubes Work:

SunMaxx 10 Evacuated Tube Solar Collectors are designed to efficiently provide hot water for a number of applications in climates and locations across the United States and around the world. SunMaxx customers use the SunMaxx 10 for domestic hot water radiant heating and pool and hot tub Heating every day at residential commercial industrial and municipal locations.


Weight: 88 lbs (without crating)
Dimensions: 40 (with pipe connections) (W) x 6.6ft (H)
Packaging: Ships via freight on a pallet or is available for local pickup (1 pallet is available for residential or commercial delivery)
Assembly Time: A collector can be assembled in 1.5 hours
Manufacturer: Silicon Solar Inc
Warranty: 3 Year limited (extended warranty available)
Expected Lifetime: 25-30 Years
Fitting: 3/4 NPT


Standard Flush and Tilt Mounting  Frame
Manifold (header)
10 Revolutionary SunMaxx Evacuated Tubes
10 Copper heat pipes
Hardware required for collector assembly

Product Details:

Tube Length: 70 in
Outer Tube Diameter: 2.2 in
Inner Tube Diameter: 2.1 in
Tube Thickness: 0.1 in
Tube Material: Borosilicate Glass 3.3
Tube Coating: Graded AI-N/AI
Thermal Expansion: 3.3 x 10-6 C
Absorption: >92% (AM 1.5)
Emittance: <8% (80 C)
Vacuum: P <5 x 10-3 Pa
Stagnation Temperature: >428 F
Heat Loss: <0.7 W/(m2 C)
Maximum Strength: 1.0 MPa
Flow Rate: 3-4 G/Min
BTU/Day @ 2000 BTH/ft2 * d: 14000


Domestic hot water
Radiant space heating
Pool and spa heating
Residential hot water applications
Commercial hot water applications
Industrial hot water applications
Municipal hot water applications

How to Assemble:

Follow our easy to use Evacuated Tube Collector Installation Guide


Notes: The 10 Evacuated Tube Collector is not include in the free shipping program, which means customers will have to pay for the shipment.

Additional information

Dimensions0.00 × 0.00 in

1 review for 10 Evacuated Tube Collector

  1. 4 out of 5


    I have been using this collector for 6 months now and there is a tremendous amount of heat collected from the sun. Great product!
