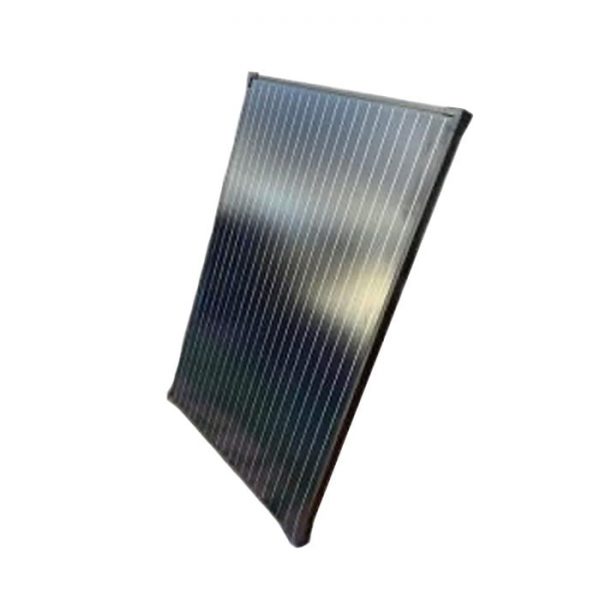

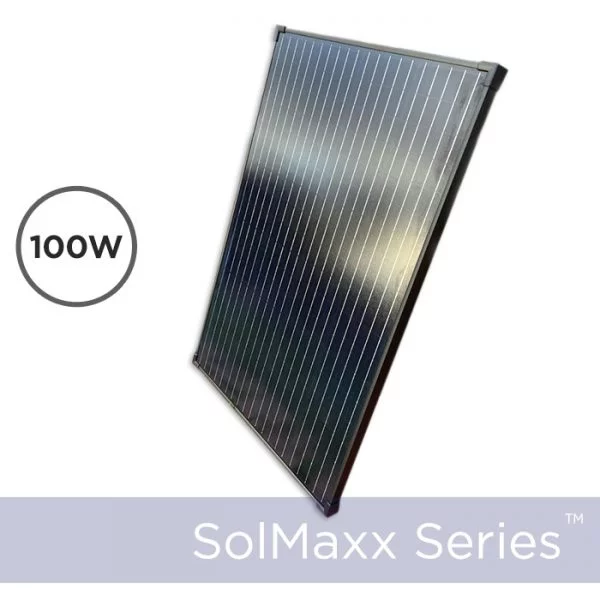

100 Watt Premium Mono Crystalline Solar Panel with 32 Cells
Our SolMaxx 100 Watt mono crystalline solar panel is perfect for your RV, boating or off grid solar energy project. Since 1999 we’ve provided our customers with the leading solar energy products at affordable prices. High efficiency solar cells (22%), utilize the latest commercially available solar cells on the market. Backed by a 25 year warranty, the SolMaxx Pro 100 Watt series withstands any environment. We produce a majority of our solar lighting kits using our own SolMaxx series solar panels.
Questions? Just give us a call at 1-800-786-0329 9AM-5PM EST.
- Additional information
Premium 100W Solar Panels - 22% Cell Efficiency
25 year power guarantee warranty.
- 36 solar cells (18v charging)
- IP65 junction box
- CE certified
- MC4 Connectors (2pcs)
- 25 year warranty
- 22% efficiency solar cells
The SolMaxx Mono Plus solar panel series utilized the latest in solar cell technology and manufactured techniques. These modules are high in power and great for use with RVs, boats, campers and other off grid power applications. Since 1999 we’ve been helping our customers go off grid and bring the sun’s power with them.
- Multi layered encapsulation enhance cell life and durability.
- Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance
- Each panel is equipped with bypass diodes to minimize power drop caused by shading.
- EL tested solar modules; no hot-spot heating guaranteed
- Manufactured with anodized black frame and black back sheets to keep each panel looking sleek and aesthetic
- Pre-drilled holes on back allow for fast and easy mounting
Solar Cells: 32 pcs
Cell Efficiency: 22%
Maximum Power at STC: 100W
Operating Voltage: 17.1v
Operating Current: 6.1A
Maximum System Voltage: 600VDC UL
Dimensions: 1025*510*30 (40.3″ x 20.07″ x 1.18″)
Junction Box: IP65
Operating Temp: -40-194 F
Open Circuit Voltage: 21.5V
Short Circuit Current: 6.4A
Maximum Series Fuse Rating: 15A
No tools required
Installs in <10 minutes
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate.
5-year material and workmanship warranty
Produced in accordance to CE, ISO9001, Module Application: Class A Quality Control Verified
Yes – these modules can be ground mounted with the appropriate ground mounting hardware kits.
You would need a solar charge controller to connect between your solar panel and the battery. We offer a selection of solar battery chargers that are compatible with our SolMaxx series panels.
Our solar panels are designed to last over 25 years using the latest technology in encapsulation and weather protection.
No, we do not make our solar panels in China.
