Product Details & Specifications
- Operating Voltage:
- Battery Backup:
6v / 3.2 ah
- Max Lift:
- Max Flow Rate:
87.1 Gallons per Hour
- Included Fountain Heads:
- Adjustable Flow:
- Dry-Run Protected:
Emmans Technical Recommendations
If you're looking for a small fountain pump you've definitely come to the right place. With discrete and compact dimensions of 3" x 2" x 2" this pump can easily fit into most ponds and fountains. A common misinterpretation of the technical specifications of this project is that it this pump will reach its maximum lift when it is pumping its maximum flow rate. In reality, these two values are opposites, and are two key points on a standard pump sizing graph called a pump curve. When a pump is achieving its maximum lift, it is actually at minimum flow, and when a pump is achieving is maximum flow, it is being forced to overcome a minimum lift. You will see the best results from this product when your application requires a fair combination of the two maximum values listed. The Solar panel mounting system provided with this kit is extremely simple to install. It comes with a stake mounting system which is comprised of four parts that fit snugly together without the use of tools. The panel itself is mounted using a ball and socket joint which allows the user to easily adjust the panel to the optimal tilt and azimuth for collecting light. Optimal tilt and azimuth are generally your locations latitude, and 180 (true south) respectively.
Solar Fountain Pump – AquaJet Pro Kit 9V
For small- to medium-sized solar applications, our AquaJet 6-9V Solar Pump Kit is the best solar water pump system on the market. Built with commercial-grade, high-quality solar components, and all water tight connections, the 6V-9V AquaJet Solar Pump Kit outperforms all other solar fountain kits in its class. It’s ideal for solar birdbaths, water fountains, waterfalls, or your own personal creative landscaping design. Best of all, you never have to worry about connecting your water feature to an existing power source as the AquaJet will function in rural and stand-alone situations.
AquaJet 6-9V Solar Pump Kit includes a 6-9V brushless solar pump with adjustable flow knob and dry run protection feature to ensure the pump’s longevity. The kit also contains a ground stake so you can securely mount the 3.5W solar panel in a position that maximizes solar exposure during the daylight hours. Moreover, the AquaJet 6-9V kit comes with a battery back-up system allowing the fountain to operate at night and in overcast conditions.
This Silicon Solar pump system is much more durable than many other solar pump systems which last for only one season (we’ve tested them), and will last for years to come. Don’t fall for the impostors, get the best solar pump system on the market, backed by the company that delivers innovative solar solutions – Silicon Solar!

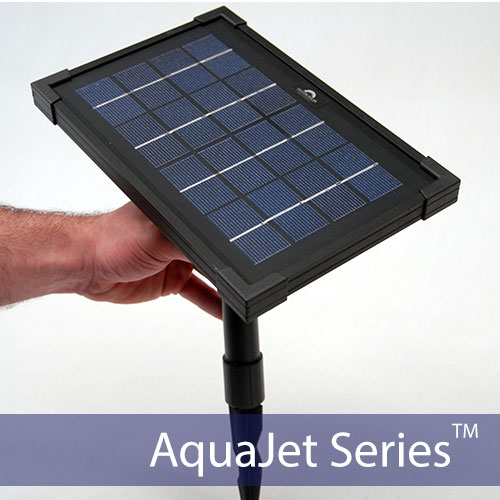

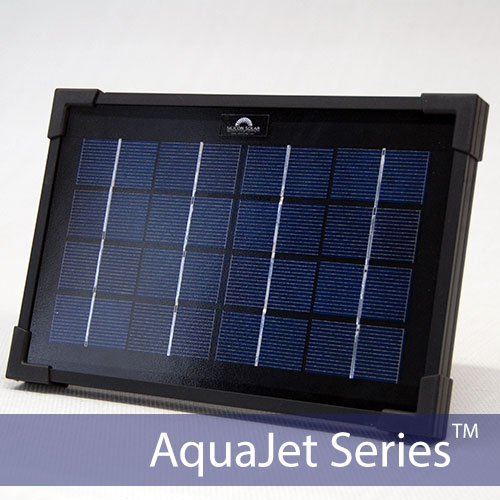

- Solar Panel: 3.5W Crystalline (10 x 6.57 x .88)
- Operating Voltage: 6V – 9V

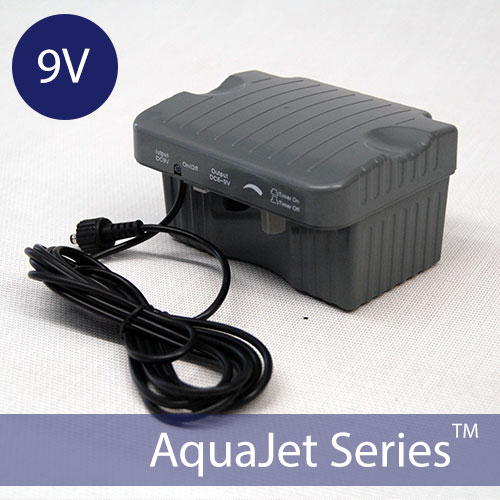

- Battery Backup: 6V / 3.2aH Dimensions: 5 ” x 4 ” x 3 “

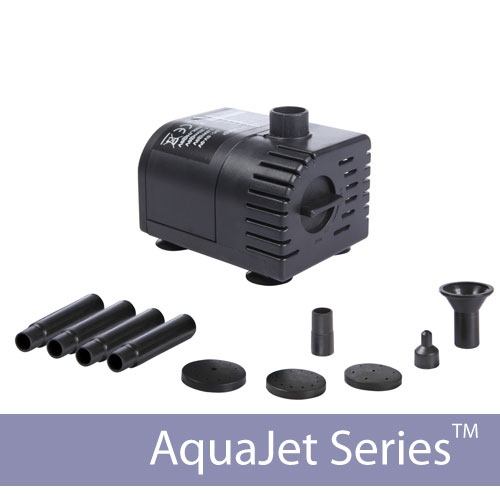

- Solar Pump: 3 ” x 2 ” x 2″
- Max Water Lift: 47.2 Inches
- Max Flow Rate: 87.1 Gallons per hour
- Cord Length: 10 ft (Panel to Battery) and 16 1/4 ft (Battery to Pump)
- Requires 1/2″ Vinyl Tubing
- Ground Stake with Screws to Secure to Panel

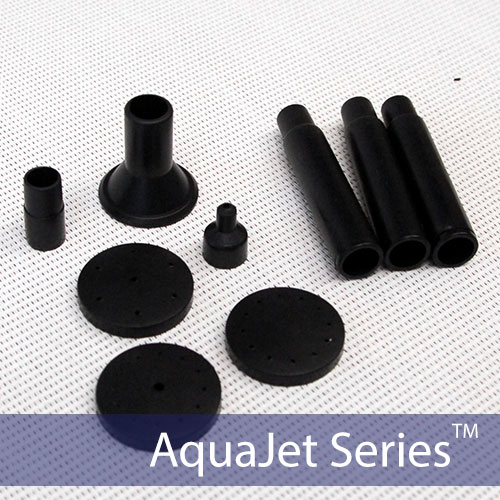

- Includes 4 Fountain Heads
- Manufactured by Silicon Solar Inc
- Ponds Fountains Waterfalls & More
- Real Battery Back Up for Night/Overcast Operation (Properly Sized)
- Durable Long Lasting Solar Pump
- High Output Solar Panel
- Includes 4 Fountain Heads
- Adjustable Flow Knob for Flexible Operation
- Brush-less Pump for Maximum Reliability
- Automatic Timer (saves battery when you don’t want to run it at night)
- Easy to Clean and Maintain
Looking for a replacement or backup pump for this kit?
Learn more about the pump kit through the video:
Looking for a larger pump? Try our AquaJet Pro Kit 24V Solar Fountain Pump:
Not Sure Which Solar Pump You Need?

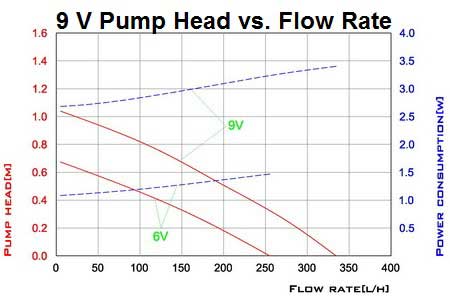

The above curve shows the relationship between pump head (in meters) and the flow rate (in liters per hour). By controlling the flow rate, the pump is able to put a variable amount of power towards pushing the water upwards. The higher the flow rate is set, the lower the overall head height will be. This is useful for sizing if a particular pump can be adjusted to fit your particular fountain and how it will perform for your specific application.
Solar Pond Aeration
Pond Size (G) Min Pump (GPH) Recommended Model 30 – 100 50 GPH AquaJet-Pro-Kit-9V-V1 100 – 200 100 GPH AquaJet-Pro-Kit-12V-MedOutput-v4 200 – 400 200 GPH AquaJet-Pro-Kit-12V-MedOutput-v4 400 – 700 350 GPH AquaJet-Pro-Kit-12V-MedOutput-v4 700 – 900 450 GPH AquaJet-Pro-Kit-24V-V1
Water Fountain Solar Retrofit Pump (Retrofit your existing water fountain)
Water Fountain Height Recommended Model 5-20 Inches AquaJet-Kit-6V-v2 21-30 Inches AquaJet-Pro-Kit-9V-V1 31-46 Inches AquaJet-Pro-Kit-12V-MedOutput-v4 47-55 Inches AquaJet-Pro-Kit-24V-V1 Taller? Call Us we can help custom size your water pump requirements
Building a Solar Waterfall?
Waterfall Height Waterfall Est GPH Recommended Model 5-20 Inches 200 AquaJet-Pro-Kit-12V-MedOutput-v4 21-30 Inches 200 AquaJet-Pro-Kit-12V-MedOutput-v4 31-46 Inches 300 AquaJet-Custom-Kit-24V-V1 47-55 Inches 300 AquaJet-Custom-Kit-24V-V1 Taller? Call Us we can help custom size your water pump requirements
Note: we recommend speaking with a sales representative before ordering a solar pump system for your waterfall due to the variations in types of waterfalls.
*Note: The performance specifications for the 6-9V AquaJet Pump is valid and applicable when in operation as a part of the 6-9V AquaJet Fountain Kit. Any altering of the product itself or changing the components will void the warranty. For best results regular cleaning and maintenance is recommended.
Solar Water Fountain Pump 9V High Output Kit
If you are looking for a more traditional solar water fountain pump without the battery backup we recommend trying our 6-9v solar pump kit. We have sold over 100,000 units worldwide to major US stores including Walmart, Home Depot and Lowes.
