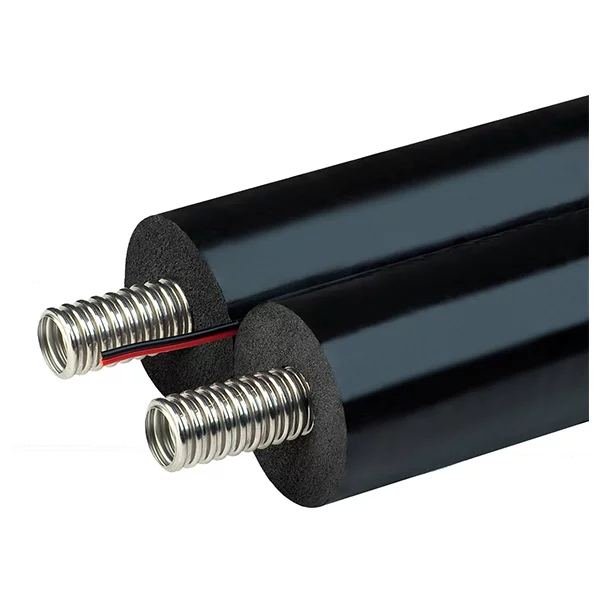

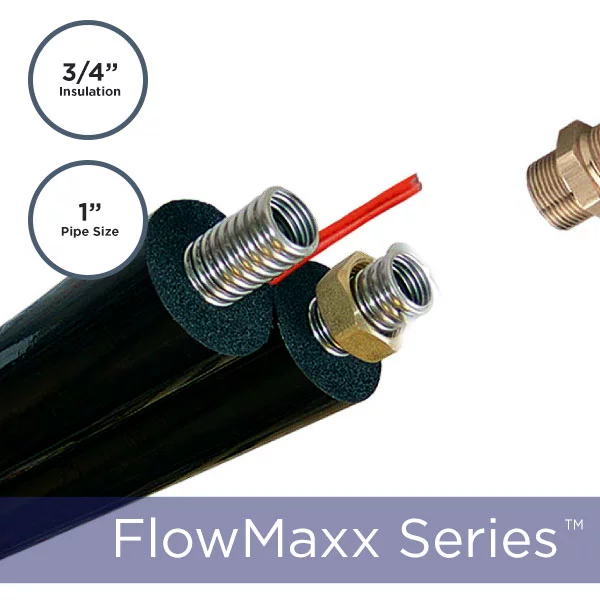

1IN Dual Stainless Steel Pre Insulated Pipe – 82FT Suitable for Drinking Water

FlowMaxx dual IDL stainless steel flexible lineset is perfect for solar hot water system installations.  Each roll includes an insulated dual run of lineset allowing for connection of the hot and cold lines of the solar loop.  The simplicity of the design allows for a faster, more cost-effective solar installation and limited lifetime maintenance of the system.

This is a very easy to install solar insulated piping. The product is easy to install, well insulated and saves countless hours whether you are installing piping for drinking water, domestic hot water or HVAC systems.

For datasheets, please see the file downloads area (tab above).

What fittings do you need to install?

We like to keep it simple. Two fittings allow you to step down to a NPT connector or split your piping using a “tee” connector.

• Adapter from the stainless steel pipe connect to 1″ NPT Male (brass Connector). The fittings can be re-used, all connections are metal to metal (no gasket between).
  • Click here FlowMaxx-A-1IN-1IN-PF-M
• Split your piping in a “tee”: Easy to disconnect and re-connect. The fittings can be re-used, all connections are metal to metal (no gasket between).
  • Click here FlowMaxx-A-TEE-1IN-PF
• Connect two sections of stainless steel pipe together 1″ to 1″
  • Click here FlowMaxx-A-1IN-1IN-CC-PF

Specifications:

• Length: 82ft (per roll)
• Connection & Pipe: 1″
• Insulation Thickness: 3/4″
• Insulation Material: High temperature close cell insulation (EPDM). (Armacel) www.armacell.com, no requirement for additional UV protection.
• Thermal Conductivity: W/(m.K): R 4.8 (.035 W/mk)
• Certifications: NSF listed pipe (listed for solar or drinking water), only NSF listed solar piping in United States.
• Material: 316L Stainless Steel
• Manufactured by: SunMaxx Solar
• Brand: FlowMaxx
• Origin: European Union
• Limited Warranty: 10 years. Normal life expectancy is 30+ years with proper use.
• Rated for outdoor use or indoor use. Additional UV protection is not required.

[/vc_column_text][/vc_column][/vc_row]

Professional Manufacturing

Carton Packaging
