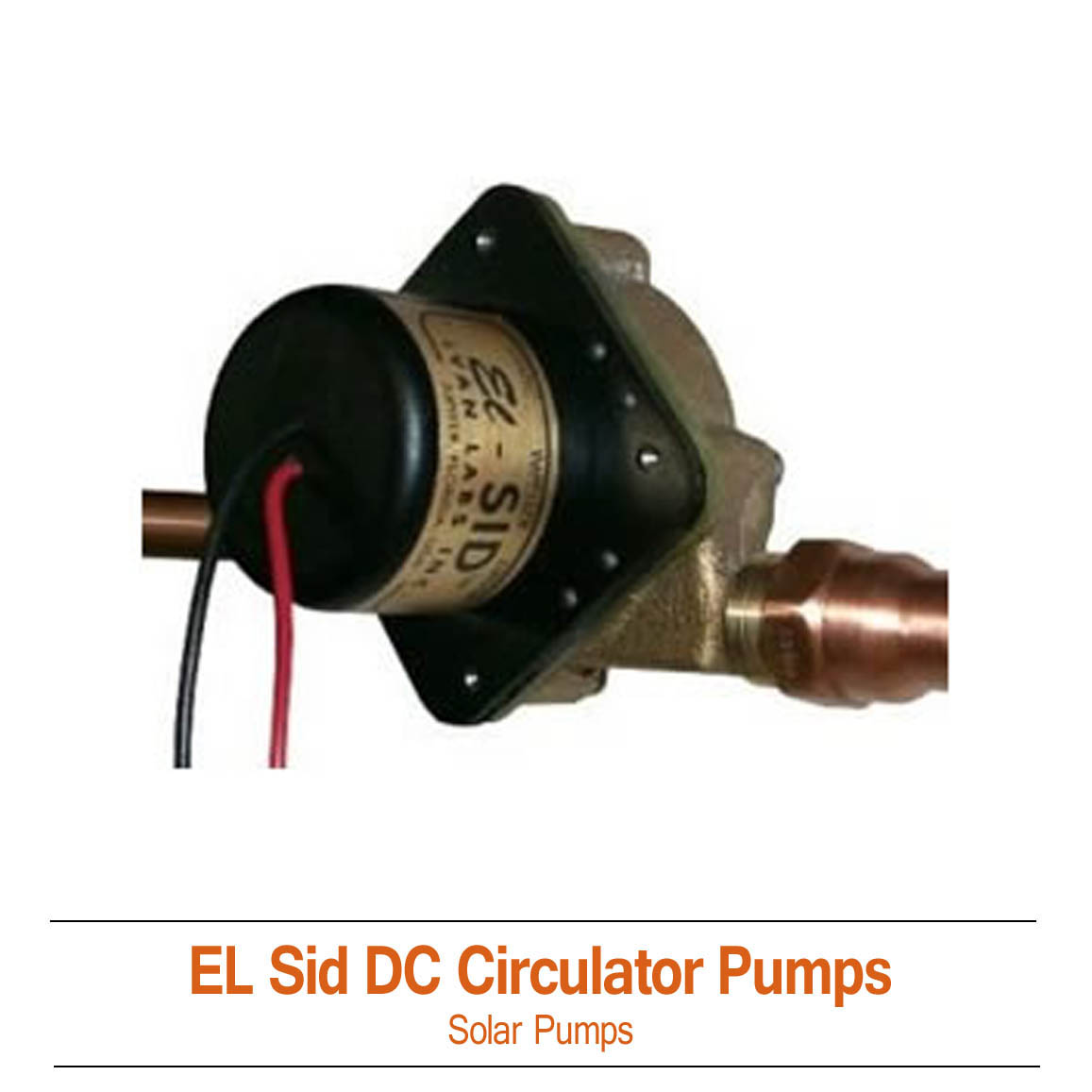

El Sid Solar Circulating Pump: SID stands for static-impeller driven, meaning these pumps contain an electronic driver or motor which has no moving parts but simply spins on a magnetic field. The magnetic field grasps the impeller and visibly spins it without any moving parts or seals. As a result, these pumps are extremely long-lived without much power consumption. These pumps are completely brass and stainless steel, so they do not corrode.

The El SID pumps have no seals which can leak, and no bearings to get hot or brushes to spark, so they are explosion proof.

Product Applications:

• Solar Domestic Water Heating Systems - closed loop
• Floor Heating Systems


Product Function:

This pump is used to circulate the water throughout the radiant panel or other hot water heat emitting system. *It is intended for use with a 30 watt PV panel.

Product Features:

• Brass and stainless steel construction
• Power source AC/DC
• High efficiency - typical start 1 watt
• Magnetic coupled drive
• Locked impeller protected [PV]
• No shaft, no fan
• Brushless
• No maintenance required
• Quiet operation

LED Signals**

**Note SID5V does not have led indicators.

Product Specifications:

• Weight:- 2 lbs
• Size: 2.75" sq - 3" thick
• Low voltage [class II] driver
• Wattage: 20 Watts
• Power usage: 12 Volts

• Maximum flow: 6 GPM

• High temperature: 250°F fluid maximum
• High pressure - 175 psi. maximum
• Vertical or horizontal piping


• All 2W2 drivers look alike. [Two Wire, 2nd Version]
• All 2W2 drivers are Static Impeller Drivers�. SID�

Frequently Asked Questions:

Q: What is the difference between the B [battery] and PV [photovoltaic] versions?

A: There are specific models which can be operated directly off a PV panel or a battery, and other models can operate off an independent AC power supply. If you plan to use an AC power supply, we recommend the following:

• 14-17 volts; use a PV model
• 12 to 14 volts; you can use a B model


Q: What is the pump's power usage?

A: The voltage of the pump is 3.5 or 5 or 20 watts at 12 V, and 10 watts at 12 or 24 V.

Q: What is the SID pump's best use?

Here are just a couple of ideas:

• You can power them with a small RV deep-cycle 12-volt battery. Keep a trickle charger on the battery so that if the power goes out your pump will keep on running.

• For solar system loops, the SID can be powered directly from a PV panel. In the sunshine, heat builds in the solar hot water panel and at the same time electricity is made in the PV panel. The pump slowly starts with the smallest amount of current and pushes the heated water to the storage tank. This eliminates the need for controllers, thermostats and sensors.

Q: What is the most common size?

A: The SID10 is the most common size because it has been around the longest. It is a good average size for radiant floor heat and domestic hot water solar.

Q: What would the 3.5 and 5.0 watt models be used for?

Q: Why are SID pumps more expensive?
