Solar Fountain Submersible Pump Kit 6V 1.5 Watt – AquaJet Solar Fountain Kit

Sale!
Solar Fountain Submersible Pump Kit 6V 1.5 Watt - AquaJet Solar Fountain Kit
solar fountain pump

Download Product Documents

SKU: AquaJet-Pro-Kit-6V-v1 | Be the first to rate Solar Fountain Submersible Pump Kit 6V 1.5 Watt – AquaJet Solar Fountain Kit (4 ratings)

4.25 out of 5
(4 customer reviews)

39.90 $29.95

Product Features:

  • Max: 39.6GPH / 20.5" Lift
  • Includes High-Efficiency Solar Panel
  • 24" Fountain Head Spray Height
  • Simple 6V DC Operation

Call Us Today Please Call Us At 1.800.786.0329 For Ordering Information

Order With Confidence 100% Secure Ordering

Call: 1.800.786.0329
Contact Silicon Solar

Interested In Becoming A Wholesaler?

Silicon Solar is looking to partner with online and offline solar product resellers.
Interested? Read more & apply today!

Custom Solutions & OEM Solar Products Available!

With more than 16 years in the industry, Silicon Solar can help you develop the
custom / OEM solar product that is perfect for you needs. Learn More

Every Year, This Product Is Equal To:

  • 140 Lbs
  • 2
  • 0.1
  • 7 G
  • $ 14.89

Download Product Documents

Product Details & Specifications

  • Max Pump Flow Rate: 39.6 GPH
  • Max Lift: 20.5 inches
  • Solar Panel Type: Mono-crystalline
  • Solar Panel Wattage: 1.5 Watts
  • Solar Pump Wattage: 1.0 watts
  • Solar Pump Voltage: 6V DC
  • Brand: AquaJet
  • Manufacturer: Silicon Solar
  • Tubing Included?: No
  • Compatible Tubing Size: 1/4 inch
  • Fountain Head Spray Type: 24 inches
  • Fountain Heads Included: Yes
  • Solar Panel Wire Length: 10 ft
  • Weight: 2lbs
  • Battery Backup?: No (See AquaJet-Pro-Kit-9V-V1.)
  • Solar Panel Dimensions: 9″ L x 1″ W x 6″ H
  • Solar Pump Dimensions: 2.5 L x 1 3/8 W x 1 7/8″ H
  • Vertical lift in tubing(in) inner diaof tube-1/4 inch (overcast): 21.49 inches
  • Vertical Lift in tubing(in) inner dia of tube-1/4 inch (sunny): 23.62 inches

6V AquaJet Solar Fountain Kit

Silicon Solar has manufactured water pumps for over 14 years making the AquaJet series solar water fountain pumps one of the most reliable solar pumps available on the market.

The high quality design of this kit means that the AquaJet provides reliable operation saving you time and money that would otherwise be spent replacing and maintaining underground wires. Operation is simple! Just place the AquaJet solar panel in the sun before putting the pump in your fountain and enjoy the soothing sound of water. The kit includes 3 fountain heads for three different spray types. Tubing (1/4 in. ID) can be attached to the pump to raise the water above the surface of your container for something such as a waterfall.

The AquaJet is designed for smaller landscape ponds and fountains of 10-150 gallons. Have a larger pond? Try our medium to high solar water fountain pump systems.

Note: All pump performance and operation levels depend on proper installation technique and sunlight conditions. Performance determined below is based on a 55000 LUX condition:



Types:

1. Water Spray height: Using NO tubing (Umbrella Effect) which is ideal for pools ponds soothing water sounds or direct spray.

2. Water Lift height: Using tubing to transport water vertically from the pump (Trickle Effect) which is ideal for birdbath fountains landscape waterfalls custom projects existing birdbaths soothing water sounds. (Optional: tubing which is not included must be purchased at local hardware store if desired.)

Specifications:

  • Weight: 2 lbs.
  • Pump Dimensions: 2.5″ L x 1-3/8″ W x 1-7/8″ H
  • Panel Dimensions: 9″ L x 1″ W x 6″ H
  • Cord Length: 10 feet with panel wire included
  • Pump Output: 39.6 Gallons Per Hour
  • Pump Lift Height: 20.5 Inches Max
  • Pump Spray Height: 24 Inches Max
  • Panel Output: 9V
  • Operation performance: Varies depending on sunlight (5-4 hrs.)


Features:

  • Great for creating your own outdoor water effects
  • Easy to install
  • Manufactured by Silicon Solar Incorporated
  • Commercial grade solar panel
  • Made from durable metal 9 volt single crystalline solar panel submersible pump and tempered glass (depending on availability some systems are durable plastic with epoxy encapsulate)



Note: Actual solar panel may differ from one shown.

Not Sure Which Solar Pump You Need?



Solar Pump Curve 9V Head vs. Flow Rate



The above curve shows the relationship between pump head (in meters) and the flow rate (in liters per hour). By controlling the flow rate, the pump is able to put a variable amount of power towards pushing the water upwards. The higher the flow rate is set, the lower the overall head height will be. This is useful for sizing if a particular pump can be adjusted to fit your particular fountain and how it will perform for your specific application.



Solar Pond Aeration

Pond Size (G) Min Pump (GPH) Recommended Model
30 – 100 50 GPH AquaJet-Pro-Kit-9V-V1
100 – 200 100 GPH AquaJet-Pro-Kit-12V-MedOutput-v4
200 – 400 200 GPH AquaJet-Pro-Kit-12V-MedOutput-v4
400 – 700 350 GPH AquaJet-Pro-Kit-12V-MedOutput-v4
700 – 900 450 GPH AquaJet-Pro-Kit-24V-V1

Water Fountain Solar Retrofit Pump (Retrofit your existing water fountain)

Water Fountain Height Recommended Model
5-20 Inches AquaJet-Kit-6V-v2
21-30 Inches AquaJet-Pro-Kit-9V-V1
31-46 Inches AquaJet-Pro-Kit-12V-MedOutput-v4
47-55 Inches AquaJet-Pro-Kit-24V-V1
Taller? Call Us we can help custom size your water pump requirements

Building a Solar Waterfall?

Waterfall Height Waterfall Est GPH Recommended Model
5-20 Inches 200 AquaJet-Pro-Kit-12V-MedOutput-v4
21-30 Inches 200 AquaJet-Pro-Kit-12V-MedOutput-v4
31-46 Inches 300 AquaJet-Custom-Kit-24V-V1
47-55 Inches 300 AquaJet-Custom-Kit-24V-V1
Taller? Call Us we can help custom size your water pump requirements

Note: we recommend speaking with a sales representative before ordering a solar pump system for your waterfall due to the variations in types of waterfalls.

Accessories:

Looking for a replacement or backup pump for this kit?

Need Assistance?
If you have questions need help or simply feel uncomfortable placing your order online feel free to contact the product representative at 1-800-786-0329.

21543

Product Image Gallery

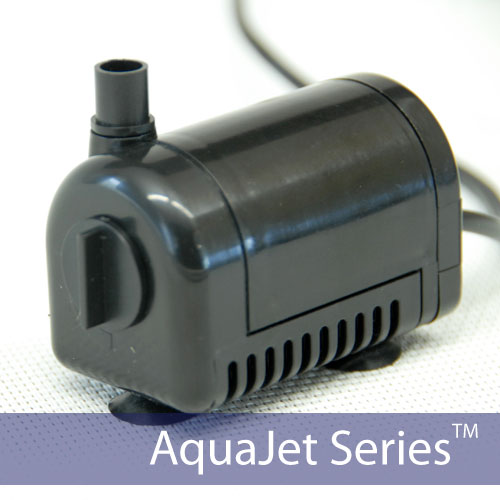

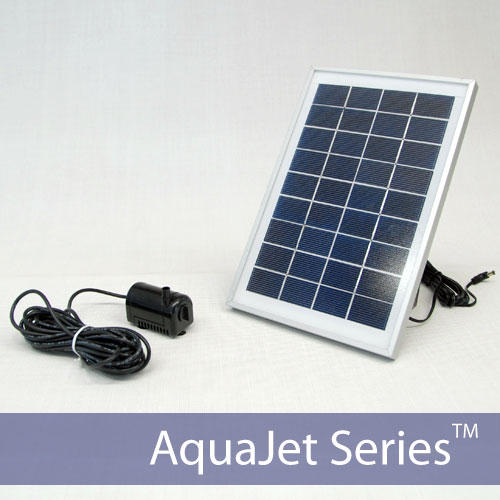

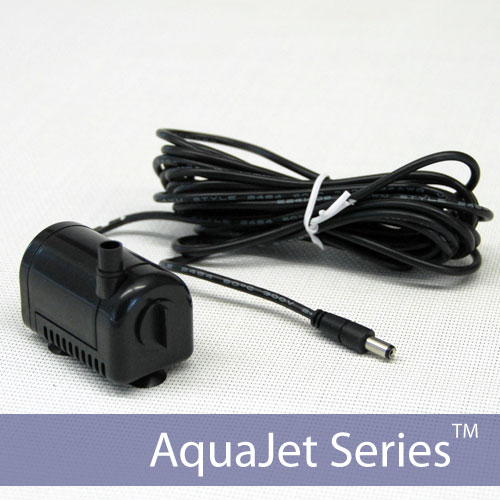

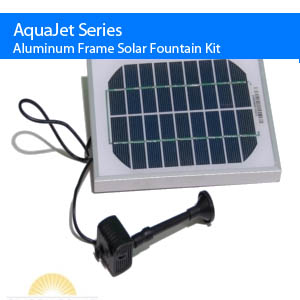

solar fountain pump
